Aftermarket Switch Installation

[sawtooth1649]

Hi All,
I'm stuck and am banging my head against a wall looking for a solution. Hoping you all can help. I bought my wife a light bar and floods for Christmas for her 2017 JK. I also purchased upgraded wiring harnesses for each set. I'm good with the wiring and installation, but can't figure out where to put the additional switches. Do I need to purchase a new plate and cut holes into the console, or can I drop them into the spare slots of the factory console (don't think they fit)? I'm fairly handy, but don't want to operate unless I have to. Any advice is welcome, except the "throw it out and bring it to a shop" .



[JPNinPA]

There are aftermarket switched that fit empty slots or entire rows of switches.
Quadratec.com
4wD.com
And others have them. Search JK switch panel


Never look down on anyone unless you are helping them up - Jesse Jackson



[TerryMason]

I would shy away from cutting the console. I'd probably try and use an open (blanked out) switch panel. That's what I did on my TJ - I bought a switch for a hardtop rear wiper, and mounted in my soft-top TJ, in one of the unused switch spots.

I see a few cool ones on Ebay for your Jeep:


On the A pillar - Hooke Road Left A Pillar Switch Pod 4 Rocker Switches Fit 11-18 Jeep Wrangler JK | eBay

or one that mounts under the console - Lower Console Switch Panel 2011 to 2017 For Jeep Wrangler JK JKU X 17235.54 | eBay



[aggreX]

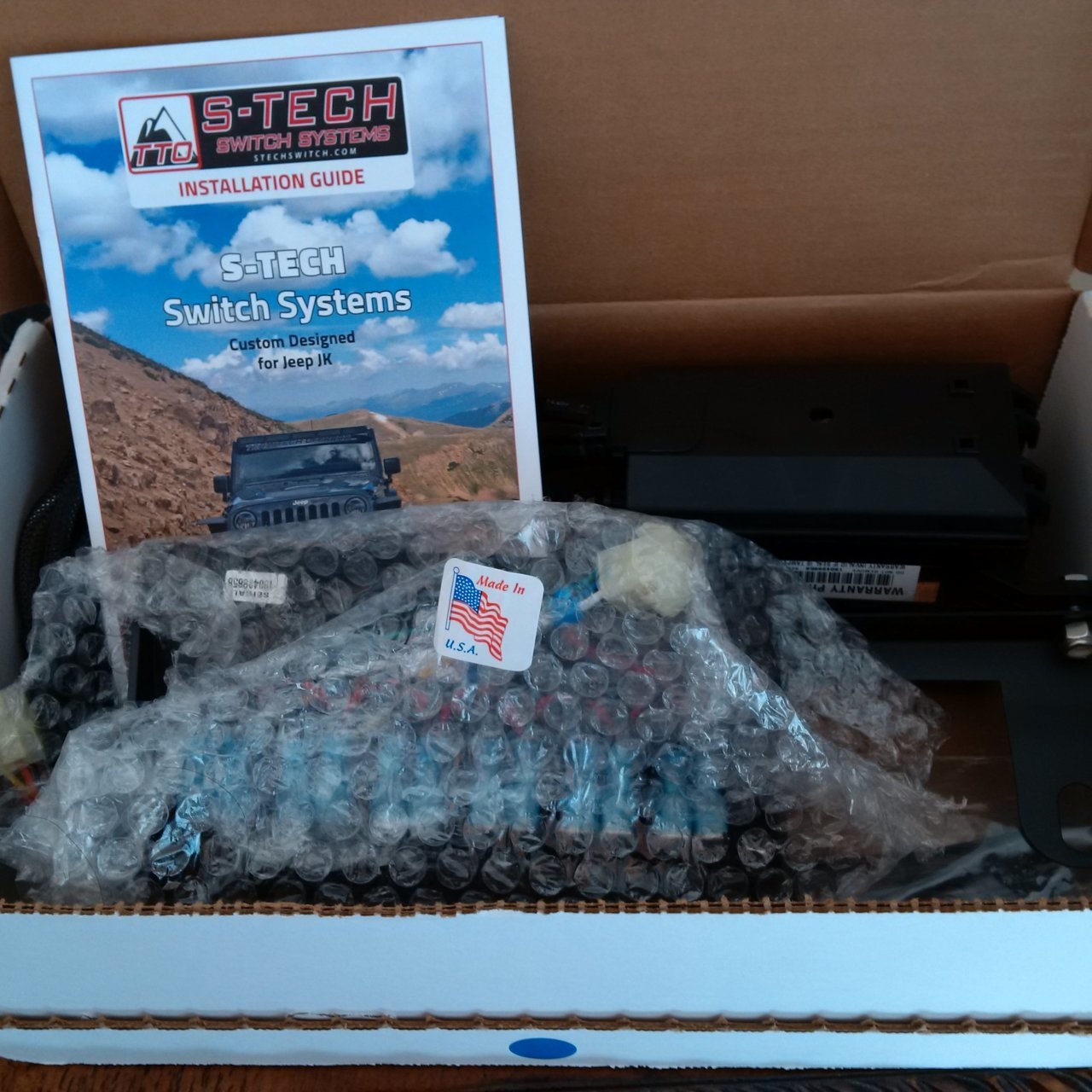

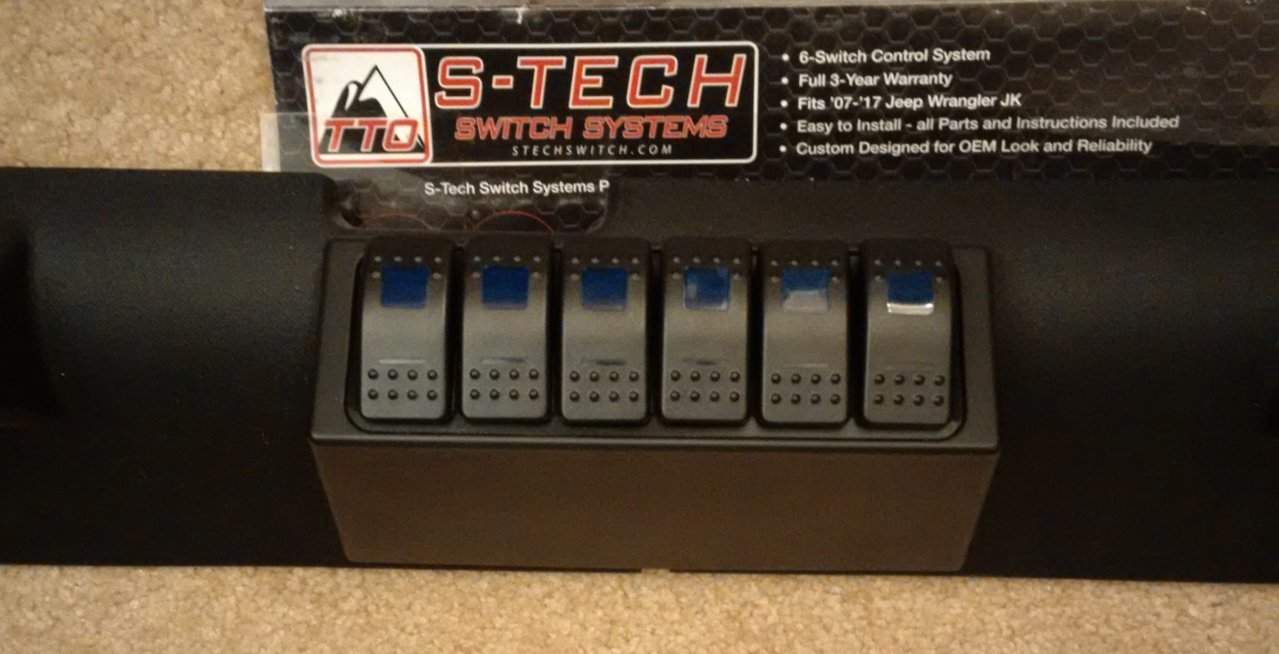

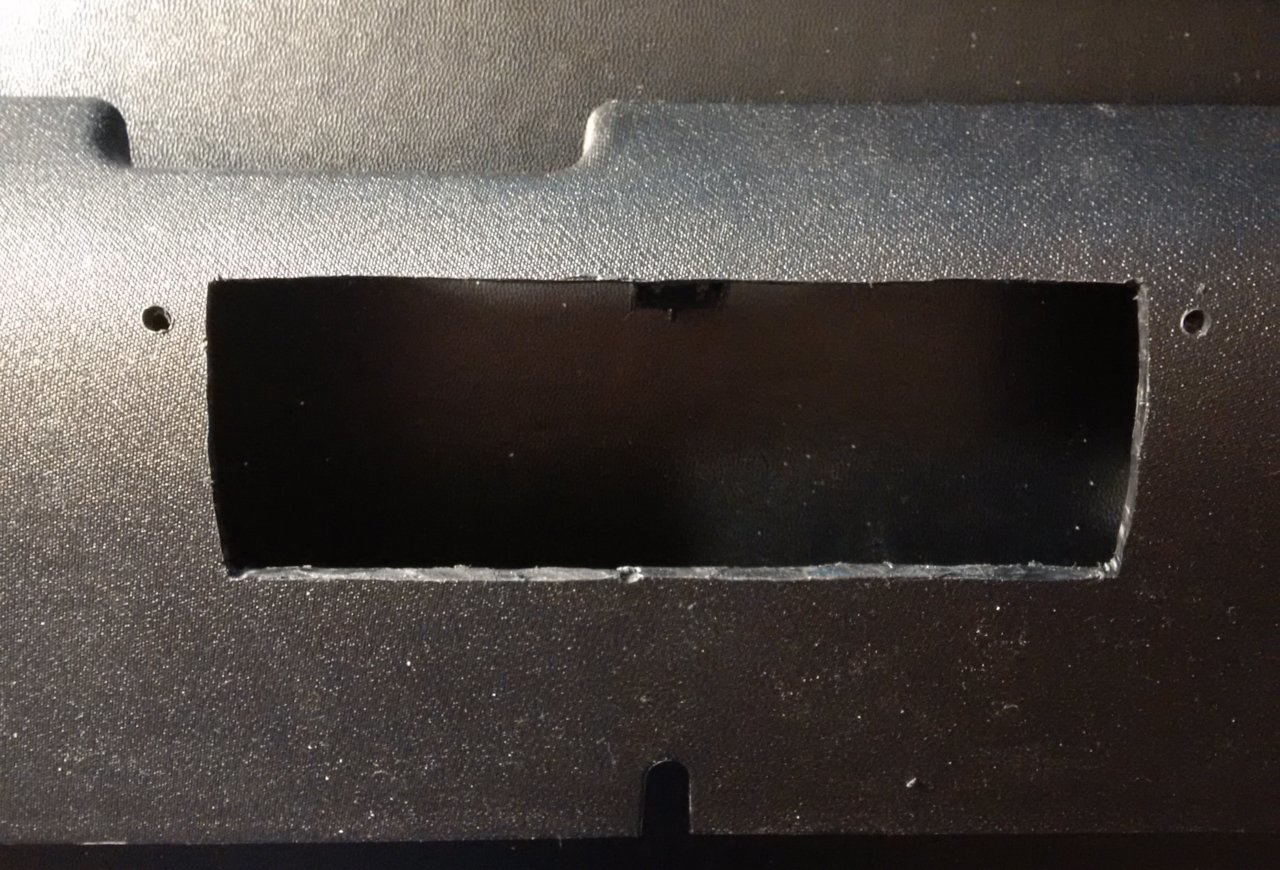

The S-Tech switch system organized and simplified all my 12V accessories that I want in my JK. The S-Tech is affordable and simple to install as only one bundled cable enters the Jeep and all future 12V accessory are connected under the hood. Only one rectangle cut out of the windshield trim is needed and this inexpensive trim is replaceable.

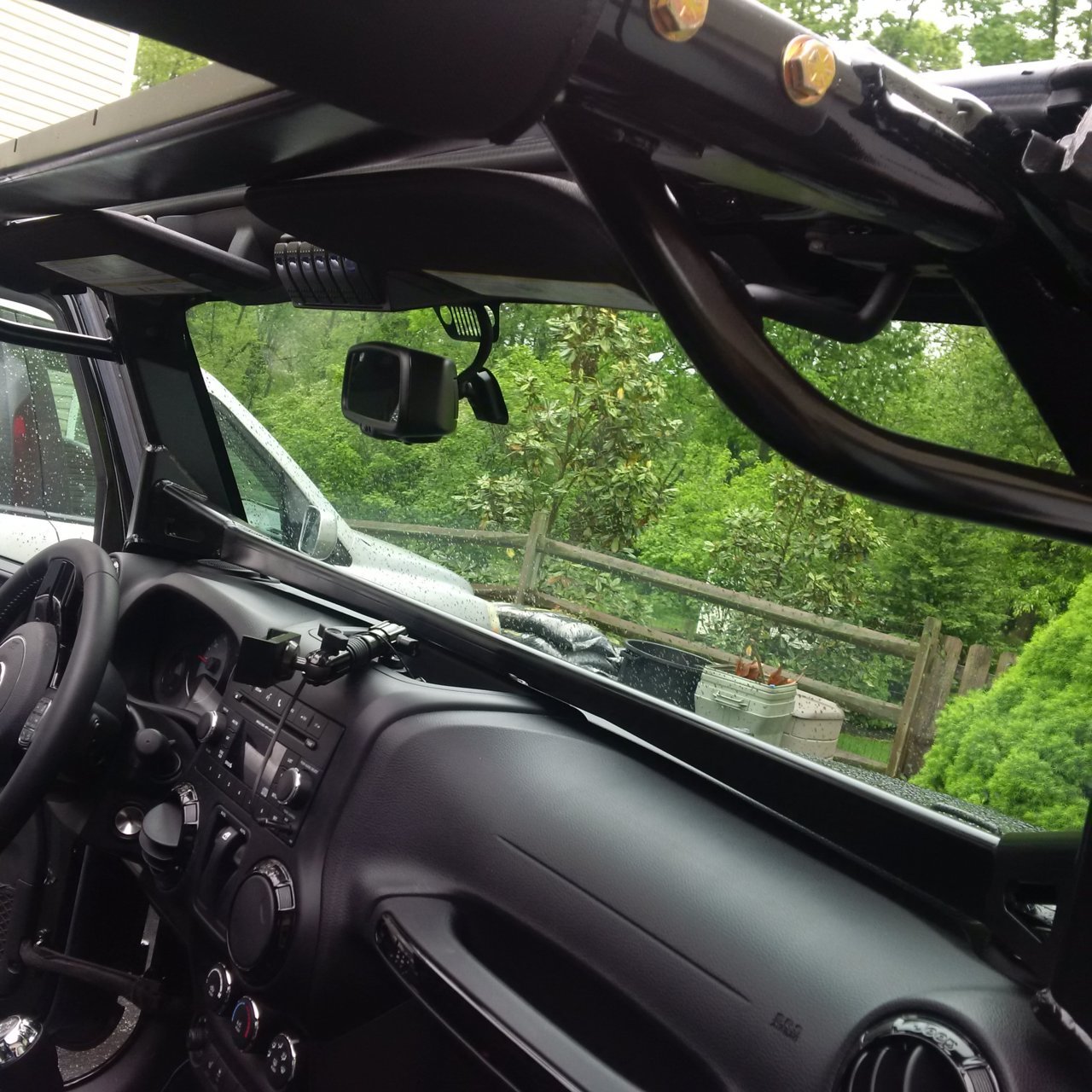

• S-Tech switch pod mounts directly into the plastic trim above the mirror. Other competitive units mount onto the footman loop with brackets and tape which can reduce access to the hard top latches and most have an open area on top of the unit
• Made-in-USA
• 3 yr warranty
• OEM look and style
• Custom rockers available
• Power control module box is smaller than competitive units



[TerryMason]

That looks pretty sharp.
Is that a stock rear view mirror? I'm guessing there's something like a backup camera in there right?



[aggreX]

If you’re referring to my mirror that’s OEM auto dim map lights only



[sawtooth1649]

There are aftermarket switched that fit empty slots or entire rows of switches.
Quadratec.com
4wD.com
And others have them. Search JK switch panel

Thank You!



[sawtooth1649]

Thank you!



[Turbogus]

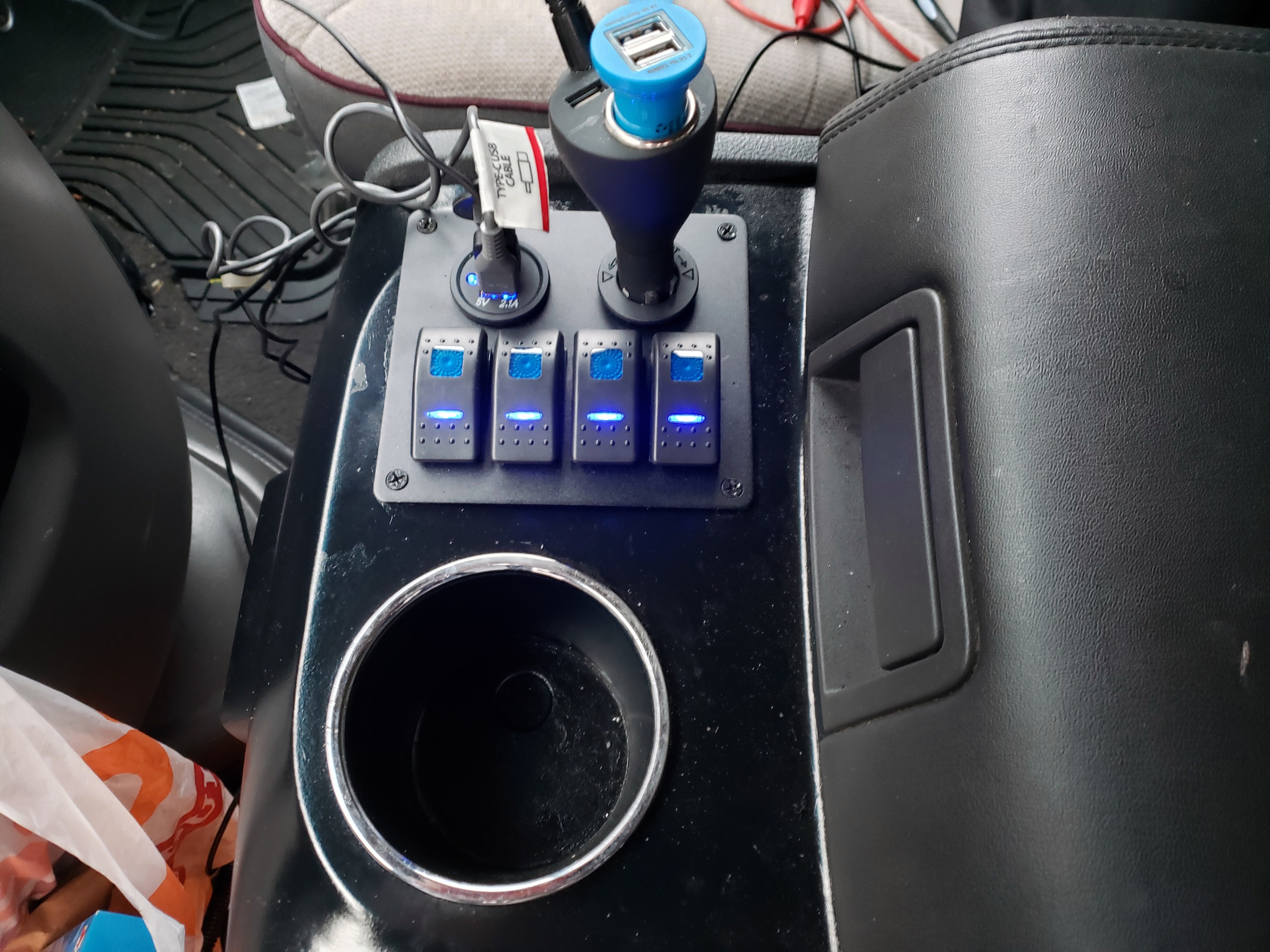

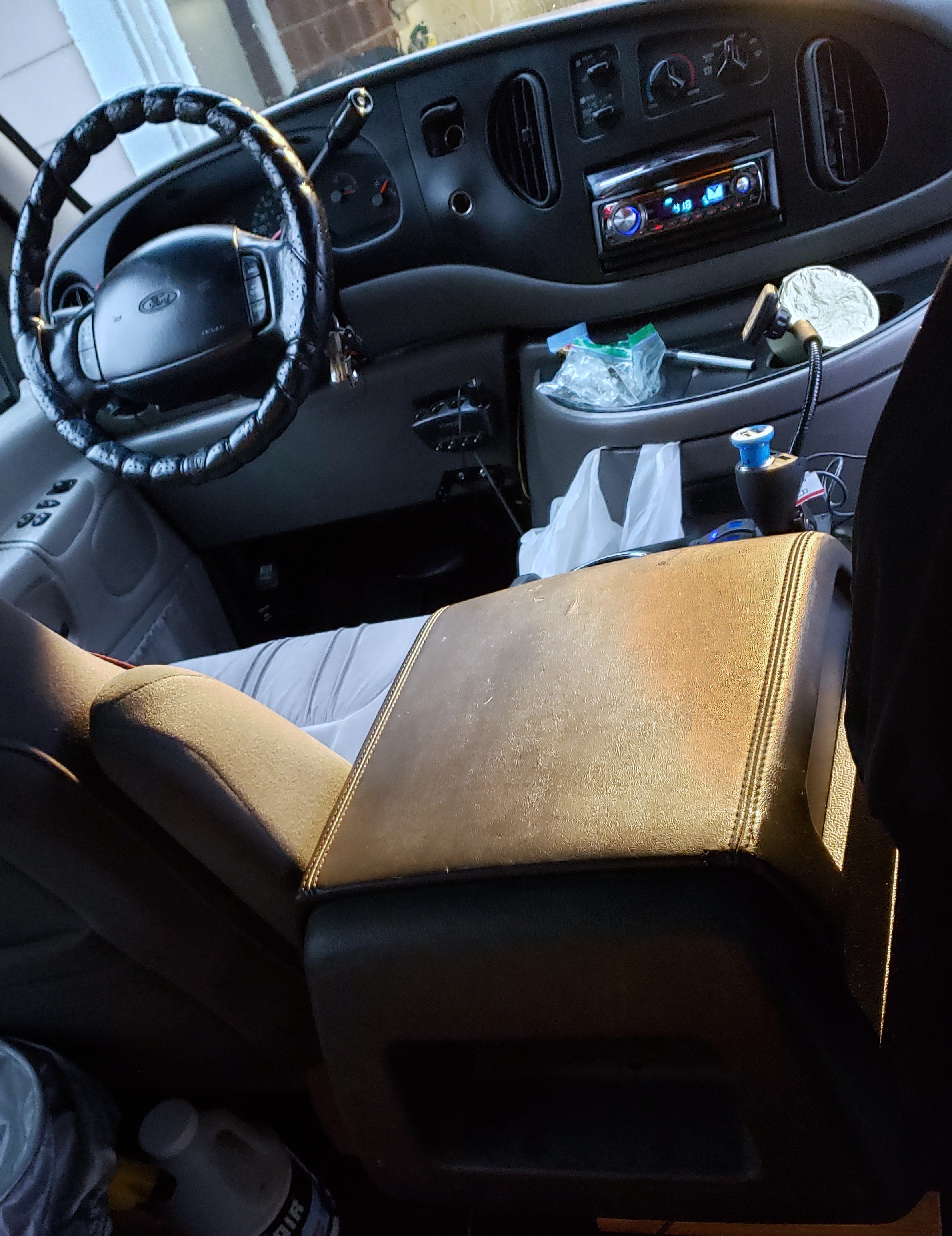

This is on my other rig but what I did was get this panel from Wish.com for $10 and sacrificed a cupholder



[Turbogus]

My switches came with labels, but no instructions on installation. Does the central square light lens lift up?



[Turbogus]

Bump



[TerryMason]

What do you mean Turbogus? Post a photo of the "central square light lens"



[JPNinPA]

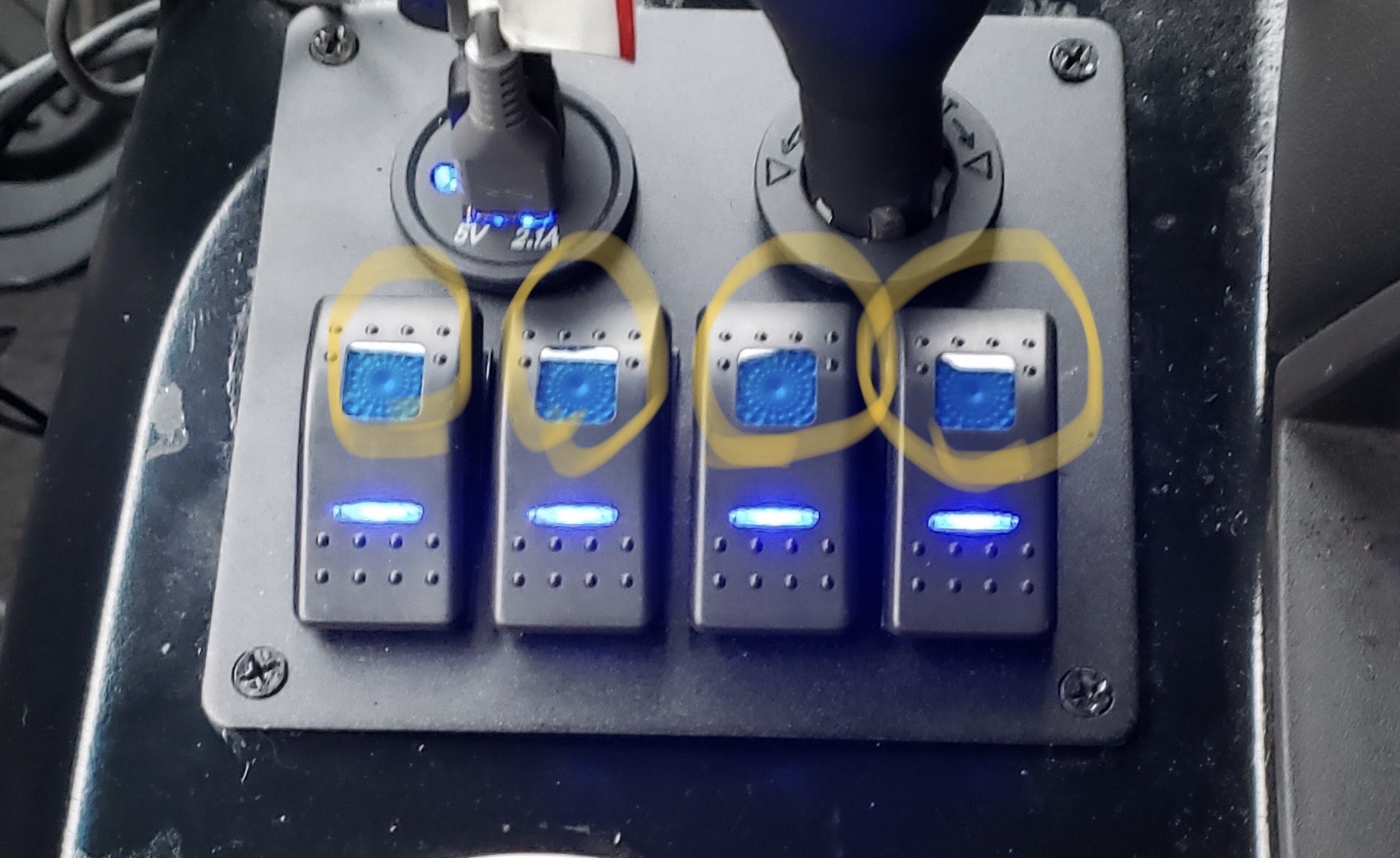

I think he means these



Never look down on anyone unless you are helping them up - Jesse Jackson



[TerryMason]

hmm. I'm not much help for that...



[Turbogus]

Yes JPN, those square lens, they came with faint labels but I don't want to bust the lens



[JPNinPA]

Link the website or mfg and part number

These look cool.

Cover your dash in switches. You know you are in deep if you need the bilge pump switch for your jeep.

Blue Dual LED Light Bar Rocker Switch Waterproof 12/24V 5P Car Boat/Caravan/4x4 Blue | Wish

Never look down on anyone unless you are helping them up - Jesse Jackson



[Turbogus]

That's quite a load of switches, I have the labels just need to know how to lift up those little squares to put the labels underneath, or are they intended to apply over the lens?



[aggreX]

That's quite a load of switches, I have the labels just need to know how to lift up those little squares to put the labels underneath, or are they intended to apply over the lens?

Check out the custom switch covers at this site. Labels tend to fall off or not illuminate properly. These are neat and snap on easily.

https://www.otrattw.net/home.php



[Turbogus]

Thanks aggreX, I noticed a Backup Alarm Disable dedicated switch which is just what I'd need if I ran more than a four gang switch panel. I did see those rocker parts with the custom text, pretty slick.
