Jeep CJ wheel base stretch kit at Motobilt.com

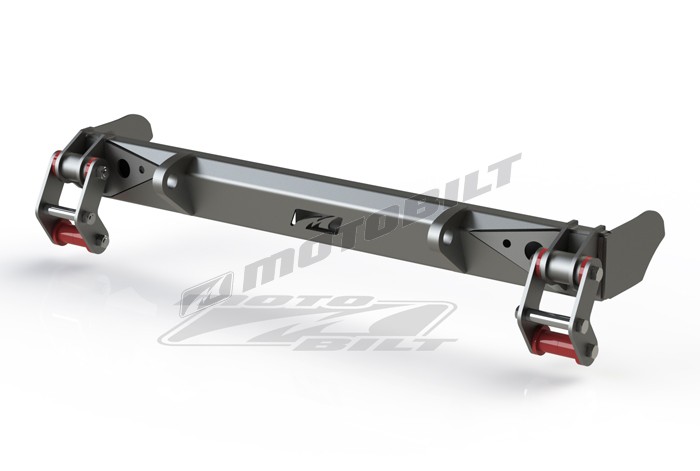

The Motobilt Jeep CJ Wheelbase Stretch Kit is designed to use Jeep XJ rear leaf springs on the rear of your Jeep CJ (1976-1986). Installing this kit moves the rear axle back about 6 inches. The kit incorporates a custom rear bumper and shackle hangers in one part. The shackle hangers are positioned high on the bumper to keep the overall Jeep ride height lower for better center of gravity. The ends of the bumper are tapered in to allow better clearance for the shackles with the rear axle at full droop. The kit comes with a custom set of leaf spring shackles designed to clear the bumper in the range of movement. The rear bumper also features 3/4" thick d-ring recovery mounts that pass through the bumper and welded on both sides. The bumper welds to the back of the factory cross member and has two side frame plates to cover the sides.
This kit does include new spring shackles as noted. The shackles are CNC laser cut from 1/4" high strength steel plate. The shackles measure 4 inches center to center and do have a 3rd cross bolt for additional support. The kit does not include poly bushings. The kit does require removing the factory gas tank. Many people install an aftermarket fuel cell.
FEATURES
The bumper is 3/16" laser cut steel plate
3/4" thick d-ring mounts
incorporated shackle mounts
moves the axle back 6 inches
measures 38" wide
Includes new shackles and shackle spacers
